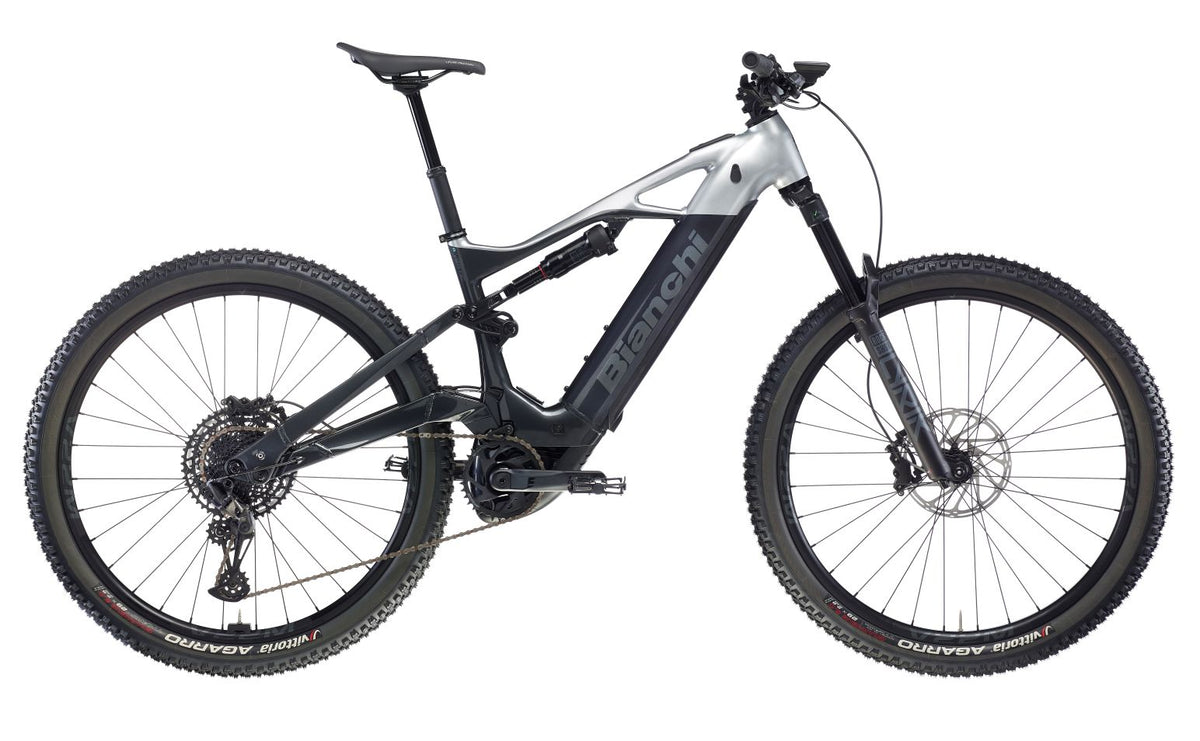

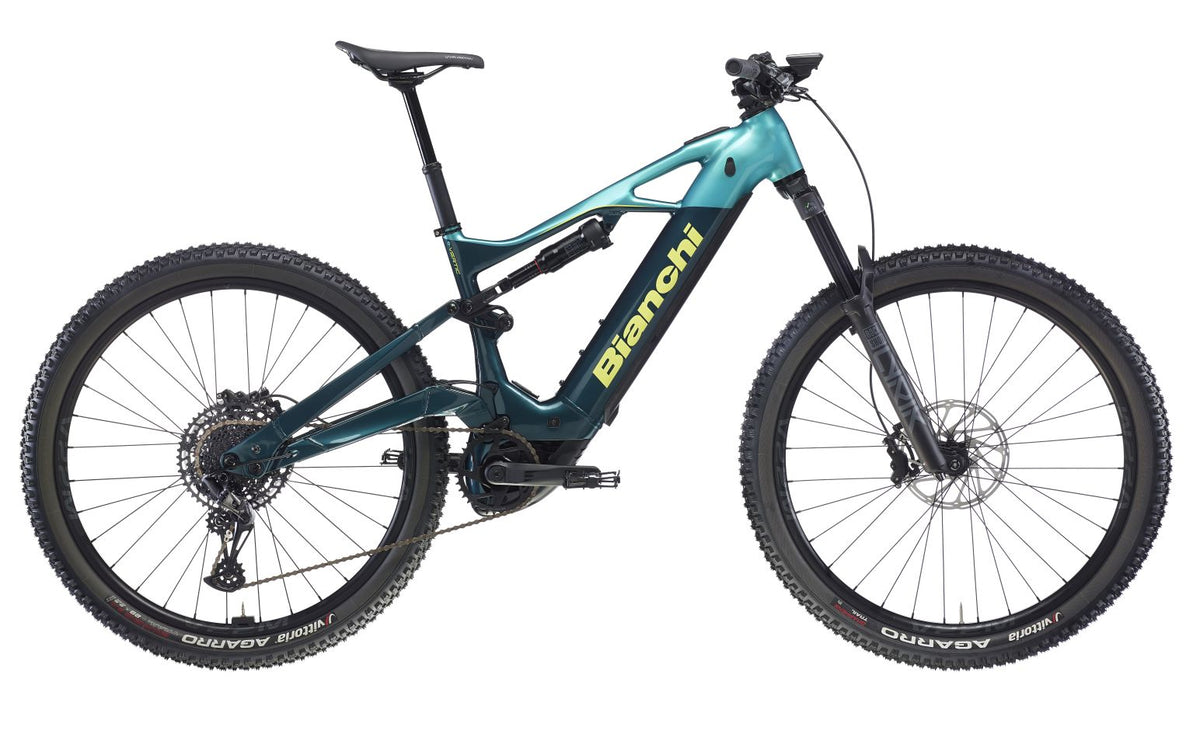

Bianchi E-Vertic FX Type



Motor Unit

Motor



Bosch Performance Line CX BDU3840 – Intuvia 100



Battery



Bosch Powertube 800 Wh



Frameset

Frame



Bianchi e-Vertic FX, aluminium, 12×148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes 40-44-48-53



Rear Shock



RockShox Deluxe Select, 210/52.5 mm for size SM, 210/55 mm for sizes MD, LG, XL, Debonair Progressive, Damper Type R, Rebound tune R55, Compression tune C34, External rebound adjustment



Fork



RockShox Lyrik 29″, 150 mm travel, Steerer tube 1,5″ tapered, 35 mm stanchions, Maxle Stealth 15×110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake



Headset



FSA 1.5″ for tapered fork steerer, Dual side internal cable routing, Head Block system



Drivetrain

Shifter



Sram SX Eagle, single click



Crankset



FSA CK-745/IS, Aluminium forged – 165 mm Crank length: 165 mm



Rear Derailleur



Sram SX Eagle, 12 sp



Cassette



Sram PG-1210 Eagle, for HG body, 11-13-15-17- 19-22-25-28-32-36-42-50T



Chain



Sram SX Eagle, 12 sp



Brakes

Brakes



Sram DB4, 4 pistons calipers, mineral oil



Rotor



FRONT: Sram Centerline, 200 mm / REAR: Sram Centerline, 200 mm



Brake Levers



Sram DB4, included in the brake



Cockpit

Stem



Velomann 1″ 1/8, 35 mm barbore Size: 50 mm



Handlebar



Velomann Aluminum, Rise 18 mm, Barbore 35 mm, Size: 780 mm



Grip



Herrmans Luna lock 130 mm



Wheels

Wheels



Velomann Rim: V22M, 622×28, 32 hole, Tubeless ready; Hubs: Shimano TC500 thru xale



Tire



Pirelli Scorpion 29×2.6 E-MTB R, 60TPI



Saddle

Seatpost



Velomann Diameter 31.6 mm, Internal cable routing length: 100 mm – SM, 125 mm – MD, 150 mm – LG/XL



Saddle



Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm



Seatpost Clamp



Bianchi Custom
